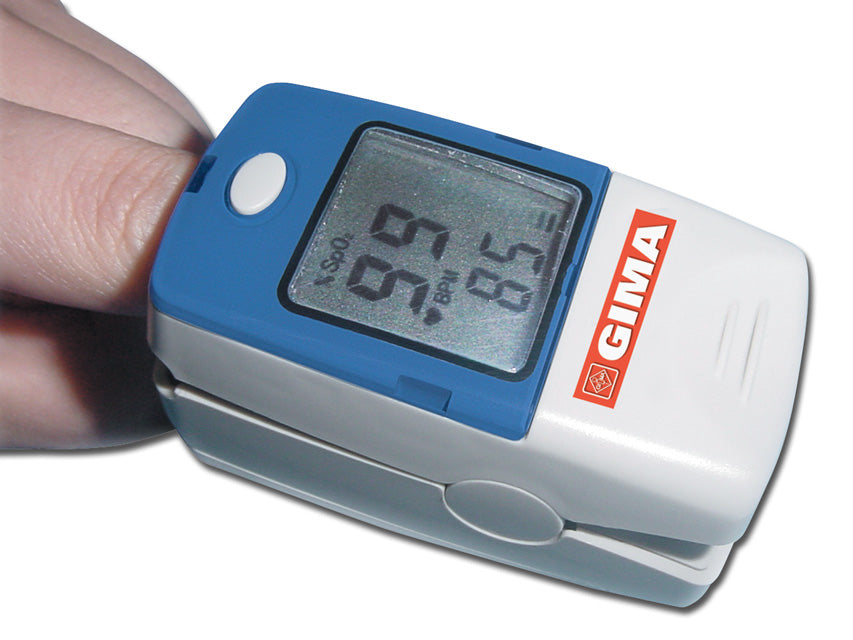

OXY-5 FINGERTIP OXIMETER Paediatric

To monitor pulse oxygen saturation and pulse rate through patient’s finger (10-22 mm finger thickness for 34282,34285 - 8-16 mm finger thickness for 34265) in medical and hospital environments.

Key features:

- SpO2 and pulse rate measurement

- barograph of pulse rate

- perfusion index display. P.I. is a numerical value that indicates the blood perfusion condition at the sensor site. It is a relative value that varies from patient to patient and from measuring site

- high accuracy and repeatability: products are manufactured by GIMA (in P.R.C. facilities) under strong quality controls guaranteed by Italian notified body (CE 0476 CERMET)

- accuracy from the first reading in few seconds thanks to a unique noise rejection capability feature

- extra stability against motion during measurement (finger bending, Parkinson's disease, hand movement, button pressing)

- automatic power on and power off when finger is out

- low voltage alarm display

- 8 language manual (GB, FR, IT, ES, DE GR, PT, Arabic)

- 50 hours working time with full batteries

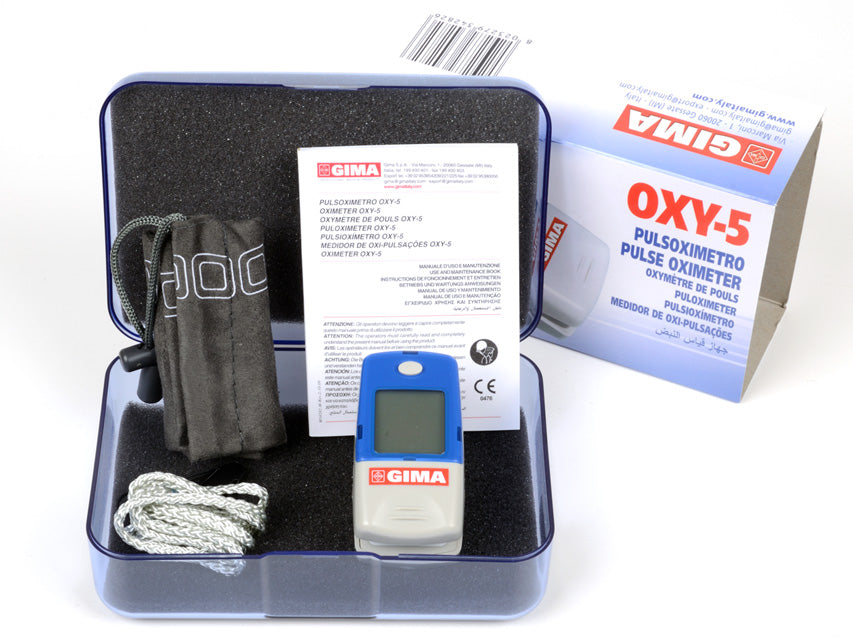

- supplied in plastic case with batteries and pouch

• Pulse rate:

- range: 30-240 bpm

- accuracy: ± 2 bpm (2%)

- resolution: 1bpm

• SpO2:

- range: 35%-99%

- accuracy: ± 2% (75-99%)/± 3% (50-75%)

- resolution: 1%

• Perfusion: Index:

- range: 0-20%

- accuracy: ± 0.1% (0.2-2%)/± 0.2% (2-10%)

- resolution: 0-1%

• Alarm: SpO2: low limit 90%

• Pulse rate: low: < 50 bpm - high > 120 bpm

• Power: 1.5V (AAA size) alkaline battery x 2

• Norms: IEC 60601-1-2 Class II

• LCD Display: oxygen saturation, pulse rate, low battery indicator

• Size: 6.6 x 3.6 x 3.3 cm

• Weight: 60 g including batteries

• Italian manufacturer (made in P.R.C.)
