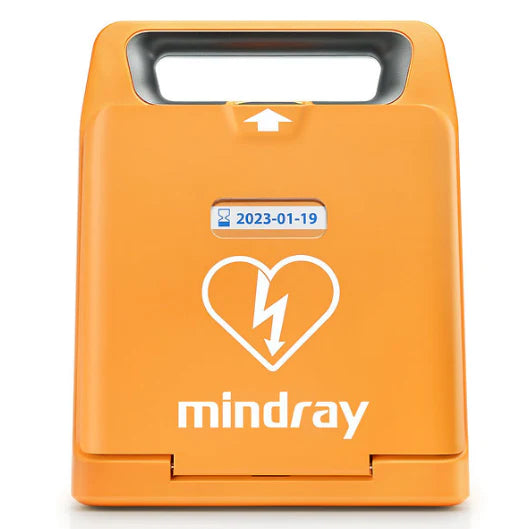

Mindray BeneHeart C1A Fully Automatic Defibrillator

Mindray’s BeneHeart C Series is one of the fastest and most advanced Automated External Defibrillators (AED) on the market today. With tailored rescue instructions based on the users’ competence, CPR guidance and a quick shock delivery of less than eight-seconds, responders can confidently treat Sudden Cardiac Arrests (SCA).

• Delivers the first shock in under eight-seconds; powers on in two-seconds, ECG analysis in five-seconds and no extra time needed for charging
• Features 360J BTE (Biphasic Truncated Exponential) technology with auto-compensation for patient impedance
• Provides defibrillation therapy according to AHA/ERC guidelines; delivering 200J initially, then 300J for the second shock and 360J for the third
• Integrated with ResQNavi^TM technology; provides tailored rescue instructions based on the user’s ability
• Audible prompts provide AHA/ERC compliant CPR guidance
• Pre-connected adult/child electrode pads with a five-year lifecycle
• Device settings, including shock protocols can be adjusted using the comprehensive Mindray C Series configuration tool
• Simple switch for changing between adult and child modes; the device will automatically adjust the CPR guidance – 30:2 for adults, 15:2 for children
• Language button allows users to select from up to three preconfigured languages
• Automatic daily self-test ensures device is always ready for use
• Extremely robust, 1.5m drop tested and IP55 water/dust proof
• Available as a semi-automatic or fully automatic device

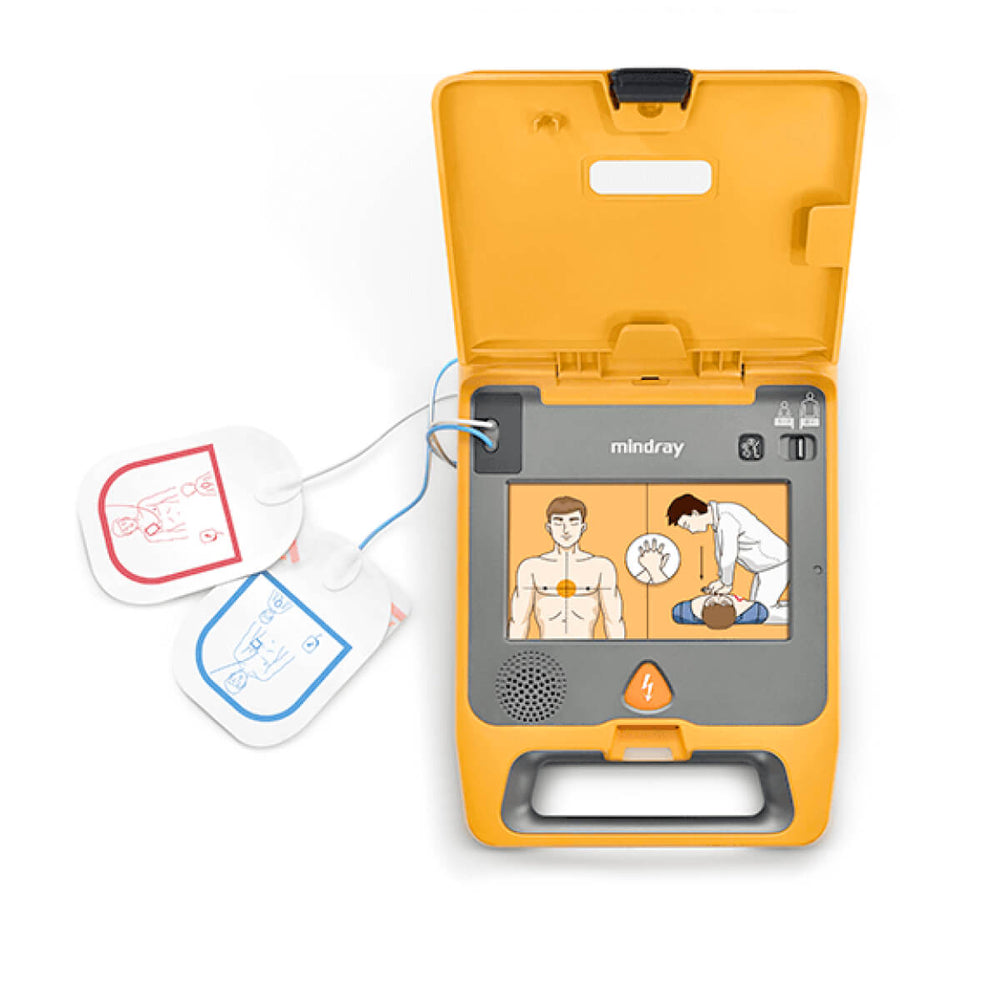

• Optional 7” colour TFT screen which provides animated guidance in addition to the audio commands
• Optional Wi-Fi or 4G connectivity, allows remote device management with AED Alert 2.0

Operations: Semi-automatic and fully automatic versions

Waveform: Biphasic Truncated exponential (BTe), with automated voltage and duration compensation for patient impedance

Range of selected energy: 100 to 360 J (adult), 10-100J (child)

Energy default: 200-300-360 J (adult), 50-70-100 J (child), default configuration meets AHA/ERC Guidelines 2015

Energy accuracy: ±2 J or ± 10% of setting, whichever is greater

Power on time: < 2 seconds

EXG analysis time: < 5 seconds

Charge time: 0 seconds (as device is pre-charged during EXG analysis)

Time from power onto shock ready: < 8 seconds (200J, new battery, 20± 5°C)

Mindray shockable rhythm analysis algorithm: Acquires and analyses the patient's ECG signals to determine whether or not to give a defibrillation shock

Sensitivity and specificity: Meets AAMI DF80 specifications and IEC 60601-2-4 specifications

Patient Impedance: 25 to 300 Ω

USER PROMPTS

User prompts: Voice prompts

CPR coaching: Voice guide, CPR etronome, CPR real-time feedback

CPR protocol: Meets AHA/ERC Guidelines 2015 and/or can be configured locally

CONTROLS

Lid release/ON-OFF: Controls device power on/off

Shock button: Delivers energy when button presses by the user (semi-automatic only)

Adult/child mode switch: Switch to child more for reduced energy and appropriate CPR guidance

Language button: Optional feature allows the user to switch between max. 3 languages

PHYSICAL CHARACTERISTICS

Dimensions: 210mm W x 286mm D x 78mm H

Weight: 2.0kg (including one battery)
