Invacare Medley Ergo Family Community Bed

With 4-Section Profiling Mattress Platform & Bed Ends

The Invacare Medley Ergo Family bed is part of the renowned Medley Ergo range, designed to provide exceptional comfort, safety, and ease of use in both care home and community settings.

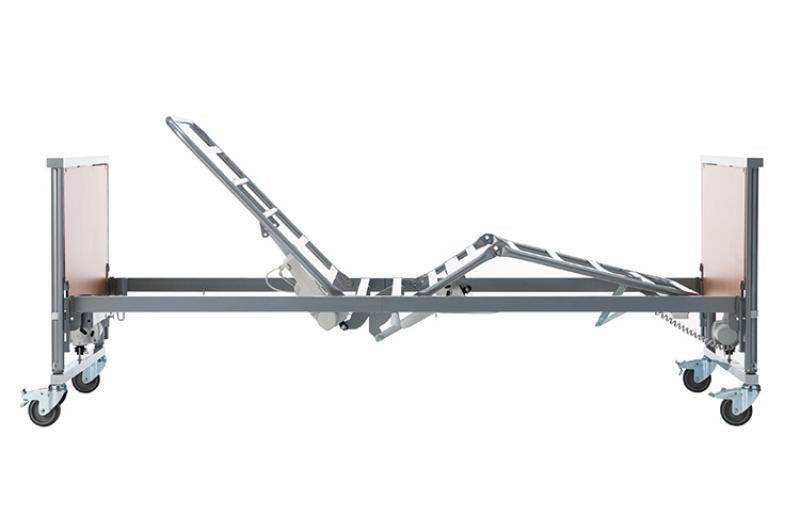

With its four-section profiling mattress platform, this bed allows multiple adjustments for optimal positioning. It helps to reduce shear and friction when the bed sections are raised or lowered, minimising the risk of the user sliding downwards while also promoting comfort and postural support.

Key Features

• Four-section mattress platform – supports a range of positions for enhanced comfort and care.

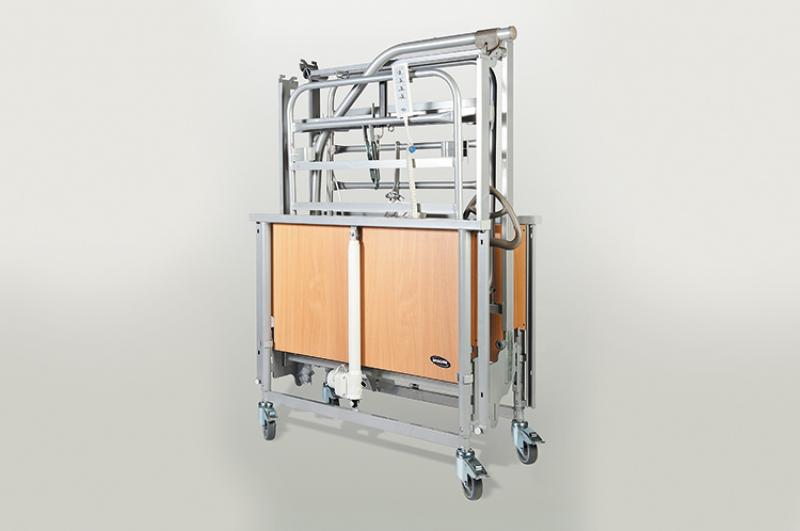

• Easy transport & installation – special transport fitting allows the bed to be collapsed, moved, and re-installed in different locations.
• Tool-free assembly – simple setup following clear instructions, no need for technicians or specialist tools.
• Improved client safety – designed to reduce shear, friction, and downward movement.
• Durable & reliable – strong construction with a high safe working load.

Dimensions & Specifications

• Width (outside): 1020 mm
• Width (inside): 900 mm
• Length (outside): 2240 mm
• Length (inside): 2080 mm
• Mattress support sections:
  • Head: 800 mm
  • Seat plate: 230 mm
  • Thigh: 300 mm
  • Lower leg: 670 mm
• Backrest angle: 0–70°
• Thigh angle: 0–24°
• Legrest lift: 11°
• Maximum user weight: 145 kg (23 stone)
• Safe working load: 180 kg (28.5 stone)

Why Choose the Medley Ergo Family?

The Medley Ergo Family bed offers a cost-effective and practical solution for care providers, combining user comfort with caregiver efficiency. Its design makes it ideal for community care environments, where flexibility, safety, and ease of handling are essential.
