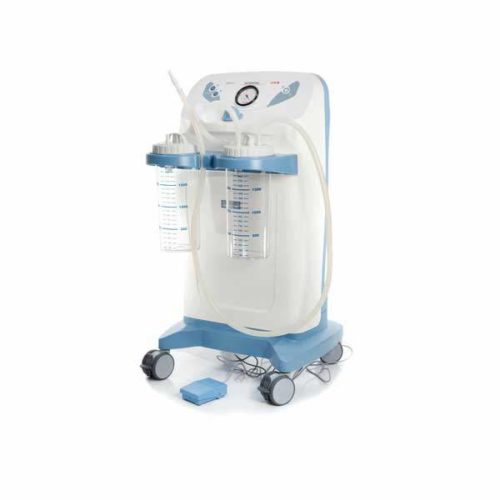

CLINIC PLUS FULL SUCTION UNIT 2x2 l jar 230V with footswitch, flow regulator

Clinic Plus Full Suction Unit 2Ltr x 2
High-Performance Suction with Dual-Jar Control and Footswitch Operation

The Clinic Plus Full Suction Unit 2x2 is a hospital-grade surgical aspirator designed for the professional suction of body fluids during and after surgery. Powered by a maintenance-free piston pump, this unit delivers consistent high vacuum and flow performance, making it ideal for wards, operating theatres, emergency departments, and outpatient clinics.

With dual 2-litre autoclavable jars, footswitch operation, and an integrated flow diverter for hands-free switching between jars, the Clinic Plus Full is a robust, user-friendly solution built for demanding clinical environments.

Key Features

High Vacuum, High Flow
Delivers a powerful flow rate of 60 l/min with a maximum suction of -0.90 bar (675 mmHg) for reliable and efficient fluid removal.

Maintenance-Free Design
Features an oil-less piston pump requiring no lubrication or routine maintenance, ensuring durability and low operating costs.

Dual Jar System with Flow Direction Diverter

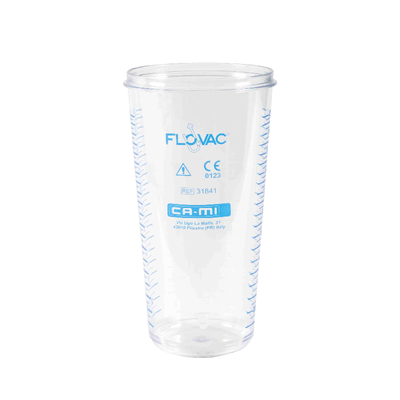

Equipped with two 2-litre autoclavable Makrolon® jars with overflow protection. The flow diverter allows seamless switching between jars without pausing suction, ideal for continuous procedures.

Hands-Free Operation
Includes a footswitch for intermittent or continuous suction modes, providing convenience and reducing manual handling during procedures.

Advanced Safety System
Built-in double overflow protection with a float valve in each jar and a hydrophobic antibacterial filter to safeguard the pump and prevent cross-contamination.

User-Centric Design
Compact and mobile with four antistatic castors (two with brakes), front-panel vacuum gauge, and intuitive control interface.

Autoclavable Components

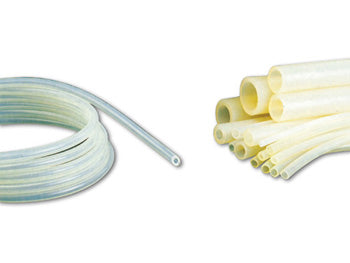

Jars, silicone tubing (ø 8x14 mm), and connectors are all designed for sterilisation at 121°C, ensuring hygienic reusability.

Multilingual Support
Supplied with a user manual in English, French, German, Italian, Spanish, Greek, Polish, and Romanian.

Made in Italy
Manufactured to exacting standards by CA-MI Srl, adhering to CEI 62-5 (IEC 601-1) and 93/42 EEC directives.

Technical Specifications

• Operating Voltage: 230 V / 50–60 Hz

• Maximum Suction: -0.90 bar / 675 mmHg

• Flow Rate: 60 l/min

• Power Consumption: 230 VA

• Operating Cycle: Continuous

• Noise Level: 51.7 dBA

• Dimensions: 460 x 850 x 420 mm

• Weight: 20 kg

• Compliance: CEI 62-5 (IEC 601-1), 93/42/EEC, EN ISO 10079-1

Included Accessories

• 2 x 2L autoclavable jars with overflow valve

• 1 x Antibacterial & hydrophobic filter

• 1 x Footswitch (intermittent and continuous modes)

• 1 x Flow direction diverter (jar-to-jar control)

• 1 x Conical connector (ø 10–12 mm)

• 1 x Autoclavable silicone tube (150 cm)

• 1 x Air suction inlet

• 1 x Power cord with Schuko plug

• 1 x Multilingual user manual

Clinic Plus Full Suction Unit 2Ltr x2 is a complete, high-performance aspiration system engineered for safety, efficiency, and effortless control. Ready for theatre, ward, or emergency use where performance matters.
