SKU: 332M21
£566.88
£680.25 (inc VAT)
Estimated Delivery: 14-21 working days

Thermal printing system, AC and DC power supplies, high capacity built-in lithium rechargeable battery, battery power sup Thermal printing system, AC and DC power supplies, high capacity built-in lithium rechargeable battery, battery power supports up to 150 ECG continuous records.

Read more

Quantity:
1
Out Of Stock
Out of stock

Want to be notified?

Leave your email and we’ll let you know when this item is back in stock.

Experience Advanced ECG Monitoring with our Cutting-Edge Device



Our ECG Monitoring System boasts a wide array of features for precise cardiac analysis and monitoring:



Key Features:



  • Crisp 3.5" TFT color LCD screen for clear data visualization
  • Simultaneous display of 12 leads for comprehensive cardiac analysis
  • Efficient thermal printing system for immediate results
  • Flexible power supply options with both AC and DC capabilities
  • High-capacity built-in lithium rechargeable battery for up to 150 continuous ECG records
  • Built-in database and memory storage for over 1000 cases
  • Digital signal processor for effective filtering
  • Auto-measurement, auto-analysis, and auto-interpretations for simplified diagnostics
  • ECG-Sync software with USB connection to PC for real-time data transmission and analysis
  • Multilingual interface options for global usability



Power Supply:



  • AC: 110-220V, 50/60 Hz
  • DC lithium battery: 7.4V, 3500 mAh



Safety Features:



  • Equipped with 2 pcs Ø5×20mm AC time lag fuses (T250mA/250V)



Product Details:



  • Compact dimensions: 315 x 215 x 77 mm
  • Lightweight design with a net weight of 1.6 kg

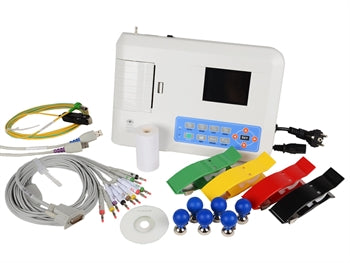

Standard Accessories:

  • ECG cable
  • Limb electrode clamp
  • Chest electrodes
  • Ground wire
  • Power connection
  • Paper roll
  • USB connection and PC software



Delivery costs for orders are calculated by the price, weight and volume of the item and this will be displayed to you within the shopping basket as you add items to the basket.



For more information, please see our shipping and returns page.

  • Safety Type: Class I, type CF applied part with defibrillation-proof applied part
  • 12-lead standard configuration
  • Floating input with defibrillation protection
  • Low patient leak current (<10µA)
  • High sampling rate: 1000Hz
  • 12-bit A/D conversion for accurate data capture
  • Wide frequency response (0.05Hz~150Hz)
  • Effective noise reduction with a CMRR of >60dB (>100dB with filter)
  • Enduring polarization voltage: ±500mV
  • Low noise level: <15µVp-p
  • MG interference filter: 25Hz/35Hz (-3dB)
  • AC filter: 50Hz/60Hz (-20dB)
  • Thermal printing system (32 spots/mm) for high-resolution output
  • Compatible recording paper size: 80mm(W)×20m(L)
  • Adjustable sensitivity (2.5, 5, 10, 20, 40 mm/mV)
  • Multiple paper speed settings for various recording modes
