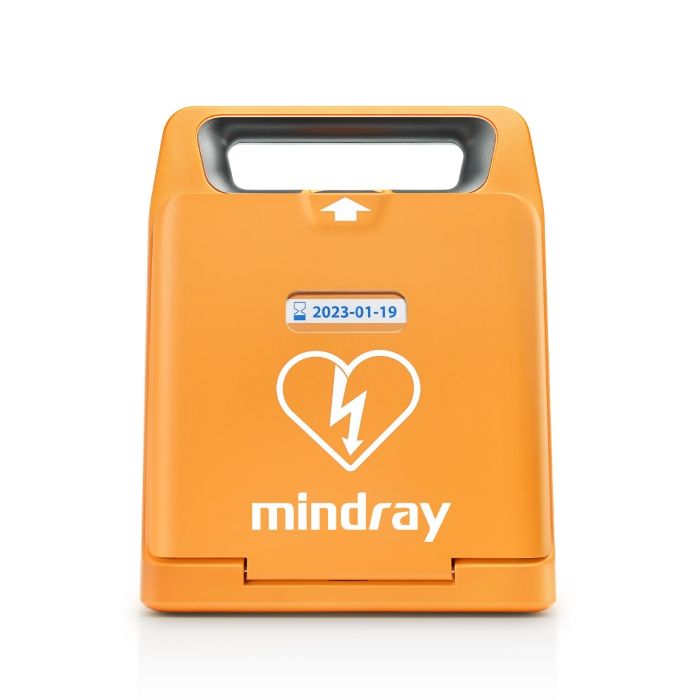

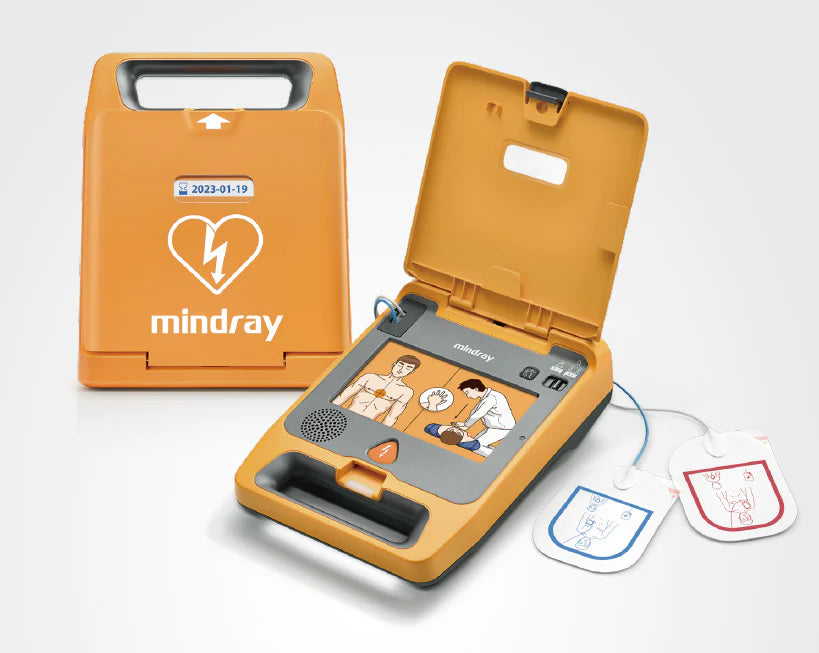

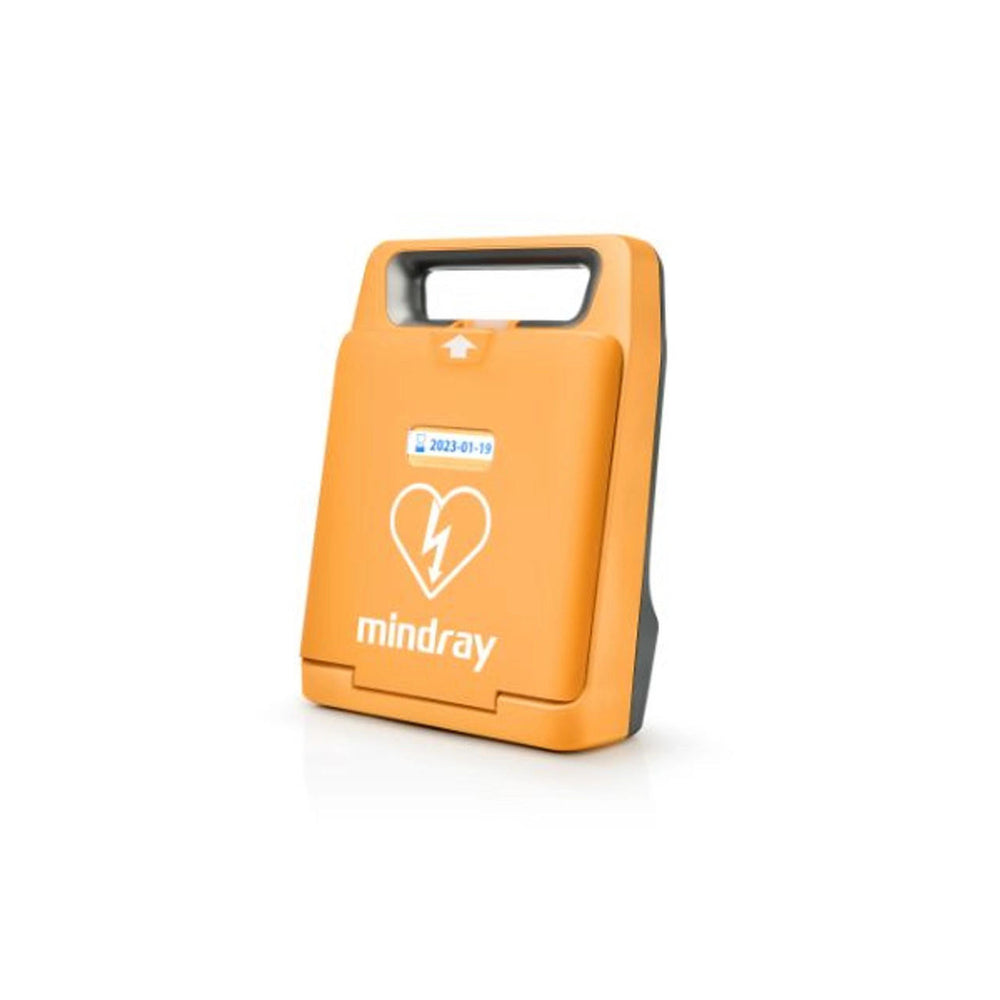

Mindray BeneHeart C1A Semi-Automatic Defibrillator
Mindray’s BeneHeart C Series is one of the fastest and most advanced Automated External Defibrillators (AED) on the marke Mindray’s BeneHeart C Series is one of the fastest and most advanced Automated External Defibrillators (AED) on the market today.
Read more
Out of stock
Mindray’s BeneHeart C Series is one of the fastest and most advanced Automated External Defibrillators (AED) on the market today. With tailored rescue instructions based on the users’ competence, CPR guidance and a quick shock delivery of less than eight-seconds, responders can confidently treat Sudden Cardiac Arrests (SCA).
- Delivers the first shock in under eight-seconds; powers on in two-seconds, ECG analysis in five-seconds and no extra time needed for charging
- Features 360J BTE (Biphasic Truncated Exponential) technology with auto-compensation for patient impedance
- Provides defibrillation therapy according to AHA/ERC guidelines; delivering 200J initially, then 300J for the second shock and 360J for the third
- Integrated with ResQNaviTM technology; provides tailored rescue instructions based on the user’s ability
- Audible prompts provide AHA/ERC compliant CPR guidance
- Pre-connected adult/child electrode pads with a five-year lifecycle
- Device settings, including shock protocols can be adjusted using the comprehensive Mindray C Series configuration tool
- Simple switch for changing between adult and child modes; the device will automatically adjust the CPR guidance – 30:2 for adults, 15:2 for children
- Language button allows users to select from up to three preconfigured languages
- Automatic daily self-test ensures device is always ready for use
- Extremely robust, 1.5m drop tested and IP55 water/dust proof
- Available as a semi-automatic or fully automatic device
- Optional 7” colour TFT screen which provides animated guidance in addition to the audio commands
- Optional Wi-Fi or 4G connectivity, allows remote device management with AED Alert 2.0
Operations: Semi-automatic and fully automatic versions
Waveform: Biphasic Truncated exponential (BTe), with automated voltage and duration compensation for patient impedance
Range of selected energy: 100 to 360 J (adult), 10-100J (child)
Energy default: 200-300-360 J (adult), 50-70-100 J (child), default configuration meets AHA/ERC Guidelines 2015
Energy accuracy: ±2 J or ± 10% of setting, whichever is greater
Power on time: < 2 seconds
EXG analysis time: < 5 seconds
Charge time: 0 seconds (as device is pre-charged during EXG analysis)
Time from power onto shock ready: < 8 seconds (200J, new battery, 20± 5°C)
Mindray shockable rhytm analysis algorithm: Acquires and analyses the patient's ECG signals to determine whether or not to give a defibrillation shock
Sensitivity and specificity: Meets AAMI DF80 specifications and IEC 60601-2-4 specifications
Patient Impedence: 25 to 300 Ω
USER PROMPTS
User prompts: Voice prompts
CPR coaching: Voice guide, CPR etronome, CPR real-time feedback
CPR protocol: Meets AHA/ERC Guidelines 2015 and/or can be configured locally
CONTROLS
Lid release/ON-OFF: Controls device power on/off
Shock button: Delivers energy when button presses by the user (semi-automatic only)
Adult/child mode switch: Switch to child more for reduced energy and appropriate CPR guidance
Language button: Optional feature allows the user to switch between max. 3 languages
PHYSICAL CHARACTERISTICS
Dimensions: 210mm W x 286mm D x 78mm H
Weight: 2.0kg (including one battery)
